3-Pole Full Size Panels

Hover over image to zoom

  • Image 1
Marlin Mfg
$16.00
SKU:
1034-2-J
Shipping:
Calculated at checkout

 Product Description



Full-Size, 3-Pole Stripanels

NOTE: Depending on the configuration of the strip panel, a $50 minimum order amount will be required.  All orders under $50 will be rejected or refunded.

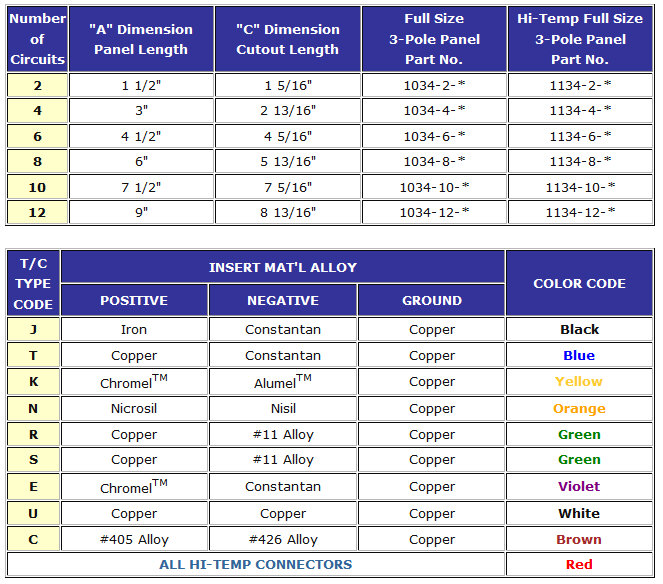

Stripanels available in 2 to 12 circuits in even number of circuits

  • Color Coded
  • For cutouts - does not require mounting frame or holes.
  • Stripanels can be wired and installed completely from front. Patented self-contained fastening device, "T-Nut", is permanently attached, simplifies mounting, holds tight. Patent No. 3046516.
  • Thermocouple type and circuit numbers are marked on face of Stripanel and polarity identification on the back. Stripanels are numbered starting from "1" unless specified otherwise.
  • Stripanels are molded of glass filled thermoset compounds (will not melt) for high strength and dependability. The color coded panels will withstand ambient temperatures to 400°F (205°C) continuous and 500°F (260°C) intermittent. High-Temperature Panels (all Hi-Temp panels are color coded red) will withstand ambient temperatures to 800°F (425°C) continuous and 1000°F (540°C) intermittent.
  • Inserts are spring loaded collet type to assure positive full contact with the negative insert larger making it virtually impossible to mismate.
  • For corrosive applications, gold or nickel plated prongs and inserts are available. Caution - system errors can result from use of plated contacts if significant thermal gradients exist at connector.
